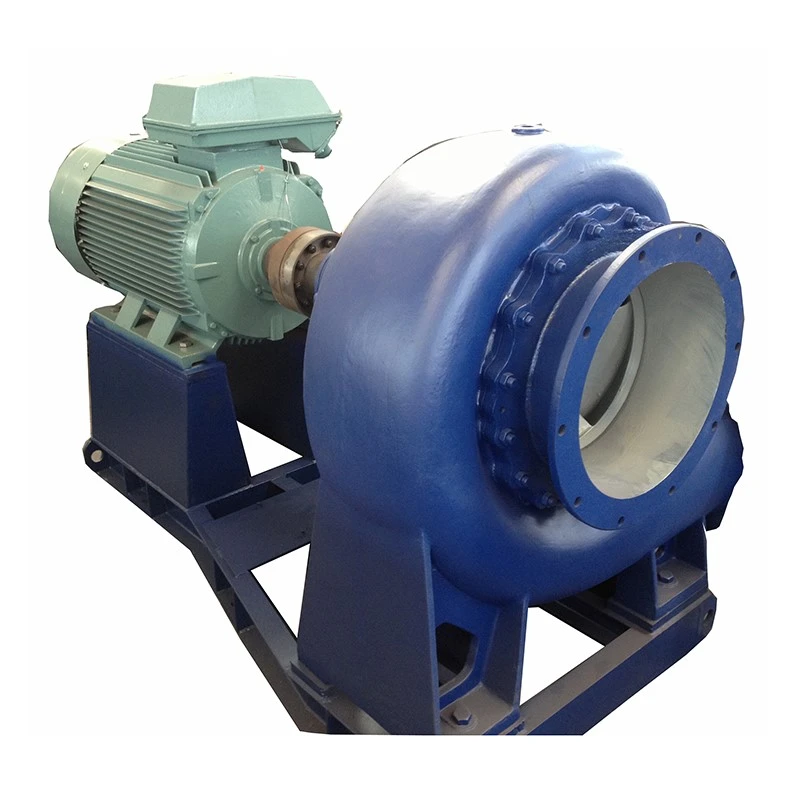

Pompa tal-fluss imħallat hija pompa orizzontali, fi stadju wieħed, b'wiċċ wieħed. Adattat għall-ġarr ta 'ilma nadif jew likwidi oħra bi proprjetajiet fiżiċi u kimiċi simili għall-ilma. It-temperatura tal-likwidu mgħoddi m'għandhiex tkun ogħla minn 50 grad. Użat b'mod wiesa 'fl-irrigazzjoni tal-art agrikola, provvista u drenaġġ ta' ilma industrijali u urban u okkażjonijiet oħra.

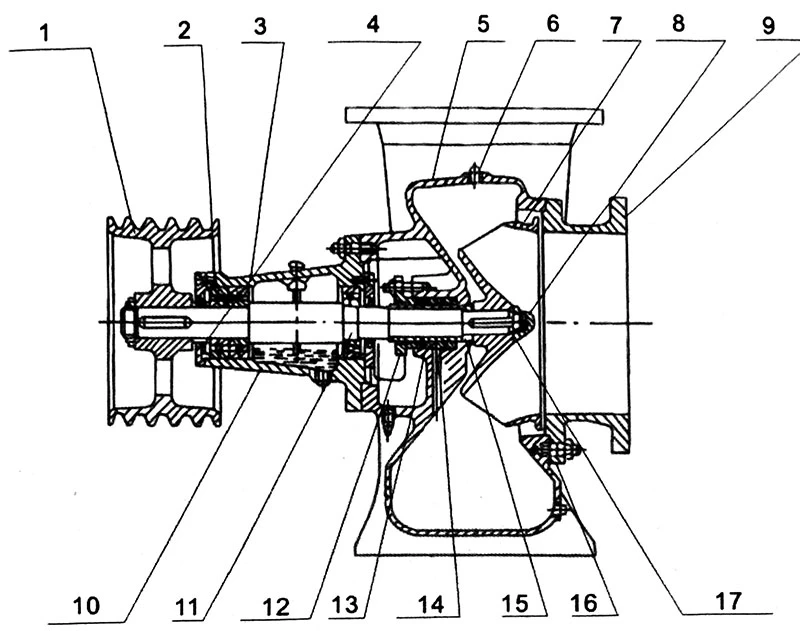

Mappa
1.Pulley
2. Kopertura tal -Gear
3.bearing
4. Qoxra tat-tarf tal-ġisem
5.Pump korp
6.Plug
7.impeller
8.Impeller Nut
9.Pump cover
10. Korp li jġorr
11.Shaft
12. Ippakkjar tal-glandola
13.Packing
14. Ippakkjar taċ-ċirku
15.Shaft Sleeve
16.Paper Pad
17.Impeller Nut
300HW -7 s
300: Pompa tad-dħul u dijametru tal-ħruġ (mm)
HW: pompa tal-fluss imħallat tal-qoxra tal-vortiċi
7: ras (m)
S: Stil strutturali
1. Struttura sempliċi, użu affidabbli, dekorazzjoni konvenjenti, effiċjenza għolja, daqs żgħir, u piż ħafif.

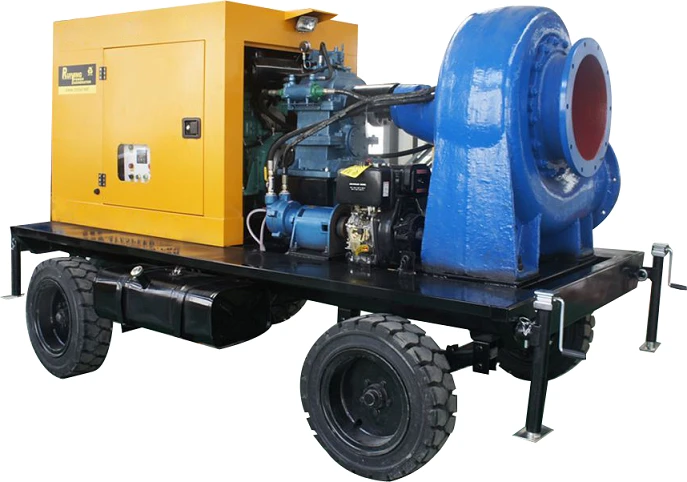

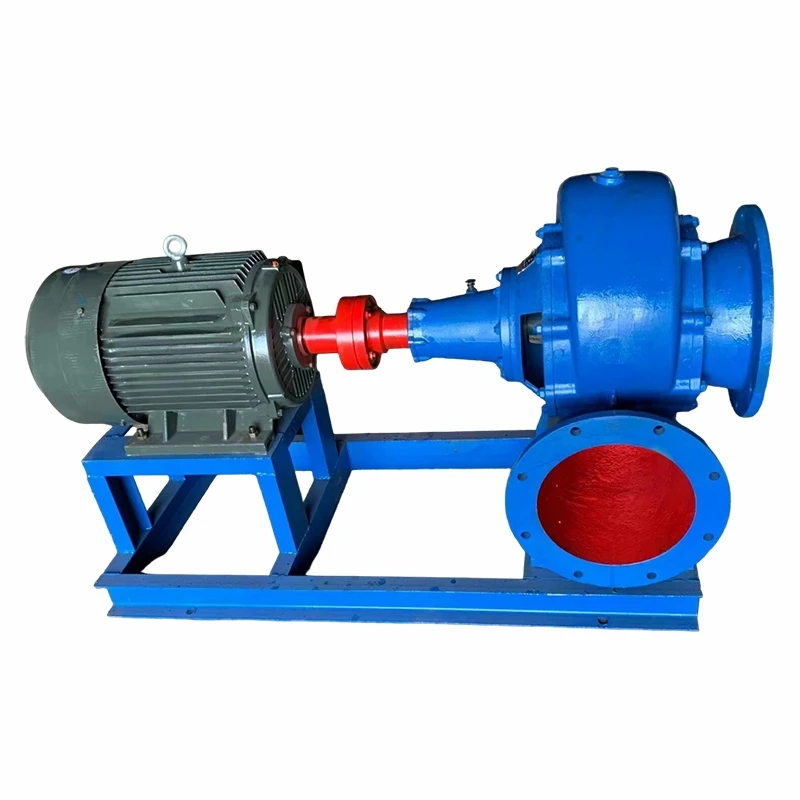

2. Il-metodi ta 'trasmissjoni jinkludu trasmissjoni diretta u trasmissjoni ta' veloċità varjabbli. Il-magni tal-enerġija użati b'mod komuni huma muturi elettriċi u magni diesel.

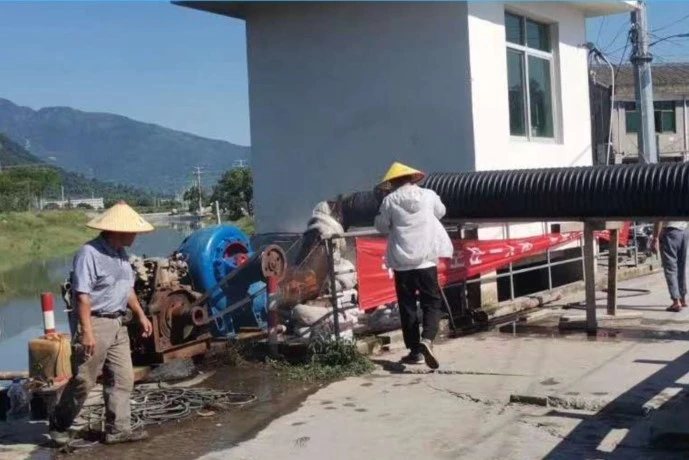

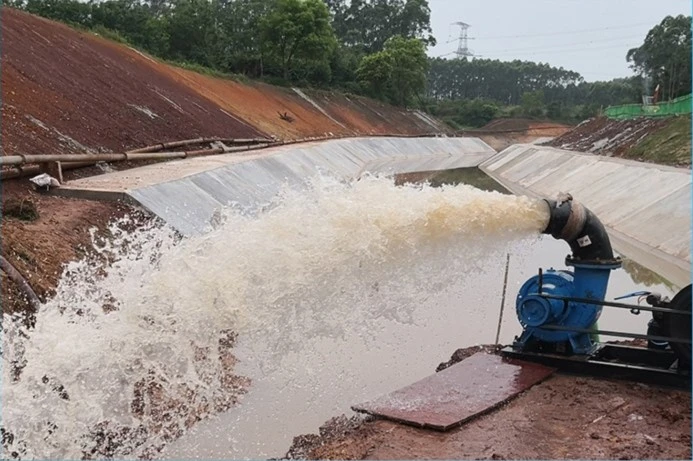

Xenarji ta 'applikazzjoni
Parametru tal-prestazzjoni
|
Tip |
Kapaċità |
Ras (m) |
Veloċità (r / min) |
Effikaċja (%) |
Qawwa tax-xaft (KW) |
Npsh (m) |
|
|
(L/S) |
(m3/h) |
||||||
|
100HW -5 |
25 |
90 |
5.0 |
2900 |
79 |
1.55 |
4.0 |
|
100HW -8 |
25 |
90 |
8.0 |
2900 |
81 |
2.42 |
4.0 |
|
100HW -12 |
25 |
90 |
12.5 |
2900 |
81 |
3.78 |
4.0 |
|
150HW -5 |
50 |
180 |
5.0 |
1450 |
82 |
2.99 |
2.7 |
|
150HW -8 |
50 |
180 |
8.0 |
1450 |
82 |
4.78 |
2.7 |
|
150HW -12 |
50 |
180 |
12.5 |
2900 |
82 |
7.47 |
6.0 |
|
200HW -4 |
95 |
340 |
4 |
1060 |
81 |
4.60 |
4.0 |
|
200HW -5 |
100 |
360 |
5.0 |
1450 |
81.5 |
6.01 |
4.0 |
|
200HW -8 |
100 |
360 |
8.0 |
1450 |
83.5 |
9.39 |
4.0 |
|
200HW -12 |
100 |
360 |
12.5 |
1450 |
83.5 |
14.68 |
4.0 |
|
250HW -4 |
125 |
450 |
4.2 |
980 |
82.5 |
6.30 |
4.0 |
|
250HW -5 |
150 |
540 |
5.0 |
1180 |
82 |
8.97 |
4.0 |
|
250HW -7 |
125 |
450 |
7.0 |
980 |
83 |
10.5 |
4.0 |
|
250HW -8 |
150 |
540 |
8.0 |
1180 |
84 |
14.01 |
4.0 |
|
250HW -12 |
150 |
540 |
12.5 |
1180 |
84 |
21.88 |
4.0 |
|
300HW -4 |
197 |
710 |
4.0 |
780 |
83.5 |
4.40 |
4.0 |
|
300HW -5 |
220 |
792 |
5.0 |
970 |
83 |
12.99 |
4.0 |
|
300HW -7 |
216 |
780 |
7.0 |
980 |
84 |
17.70 |
4.0 |
|
300HW -8 |
220 |
792 |
8.0 |
970 |
85 |
20.30 |
4.0 |
|
300HW -12 |
220 |
792 |
12.5 |
970 |
85 |
31.72 |
4.0 |
|
350HW -4 |
278 |
1000 |
4.3 |
980 |
85 |
16.6 |
4.5 |
|
350HW -8 |
278 |
1000 |
8 |
980 |
85.5 |
25.5 |
4.5 |
